Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HiSEL
  • Model Number: VTD/ VTB 1KVA-5KVA
  • Specification: Normal
  • Application: Commercial
  • Output Voltage (V): 220vac 230vac 240vac
  • Load Power (W): 800w 1600w 2400w 3200w 4000w
  • Solar Power (W): 1kva 2kva 3kva 4kva 5kva
  • Work Time (h): 24h/7days
  • Rated Power: 1kva 2kva 3kva 4kva 5kva
  • solar charger: MPPT /PWM optional
  • Power factor: 0.8
  • Input Voltage: 230Vac, 50Hz/60Hz(auto detection)

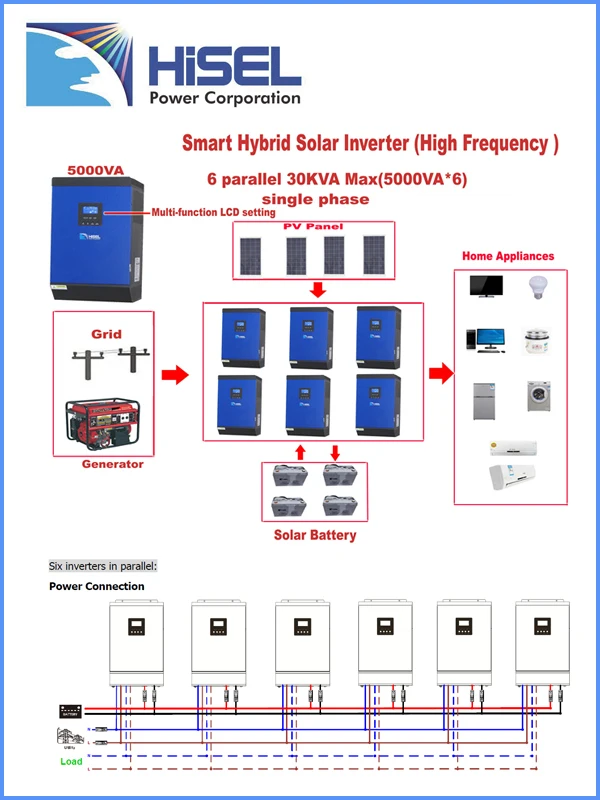

  • Parallel: up to 6 units (Optional)
  • Selectable Voltage Range: 170-280VAC (for personal computers); 90-280VAC (for home appliances)
  • Voltage Waveform: pure sine wave
  • Battery Voltage: 12vdc 24vdc 48vdc
  • Max. Battery Charge Current: 10A 20A 30A
  • Solar charge current: 50Amp

Packaging & Delivery

Packaging Details Strong Canton Package or with wooden stock
Delivery Time 1-2 week
HiSEL off-grid high frequency 3000VA power inverter with charger

Product Description

Specifications

1. Low idle consumption
2. Solar/AC prior configurable
3. MPPT controller with 98% efficiency
4. Pure sine wave
5. DC12V 24V 48V

1. Features of HiSEL hybrid solar inverter

- Pure sine wave inverter

- Built-in MPPT solar charge controller

- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Output overload protection
- Over temperature protection
- Output short circuit protection
- PV reverse polarity protection
- PV over voltage protection
- Battery over voltage protection
2. Datasheet of HiSEL hybrid solar inverter

Model

HI0824-IHWM

HI1624-IHWM15

HI2424-IHWM15

HI2448-IHWM30

HI3248-IHWM

HI4048-IHWM



Rated Power

1KVA/800W

2KVA/1600W

3KVA/2400W

3KVA/2400W

4KVA/3200W

5KVA/4000W



Input



Nominal Input Voltage

230VAC, 50Hz/60Hz(auto detection)



Selectable Voltage Range

170-280VAC (for personal computers); 90-280VAC (for home appliances)



Max AC Input

300VAC



Transfer Time

10ms typical (UPS); 20ms typical (appliances)



Output



AC Voltage Regulation

230VAC ± 5% (battery mode)



Voltage Waveform

pure sine wave



Peak Efficiency

90%

93%



Overload Protection

5s@≥150% load; 10s@110%~150% load



Surge Capacity

2 x rated power for 5s



Battery





Battery Voltage

24VDC

24VDC

48VDC

48VDC



Max. Charge Current

10A or 20A

20A or 30A

10A or 15A

20A or 30A



Solar Charger (MPPT)



Max PV Array Power

600W

1500W

3000W

3000W



Max Charging Current

25A

60A

60A

60A



Max. PV Voltage (Voc)

75 VDC

145 VDC

145VDC



General



Safety Certification

CE (EN62040-1)



Operating Environment

0°C to 55°C, 5% to 95% relative humidity (non-condensing)



Dimension (D*W*H)

128*272*355mm

140*295*479mm

140*295*540mm



Net Weight

6.8kg

11.5kg

13.5kg

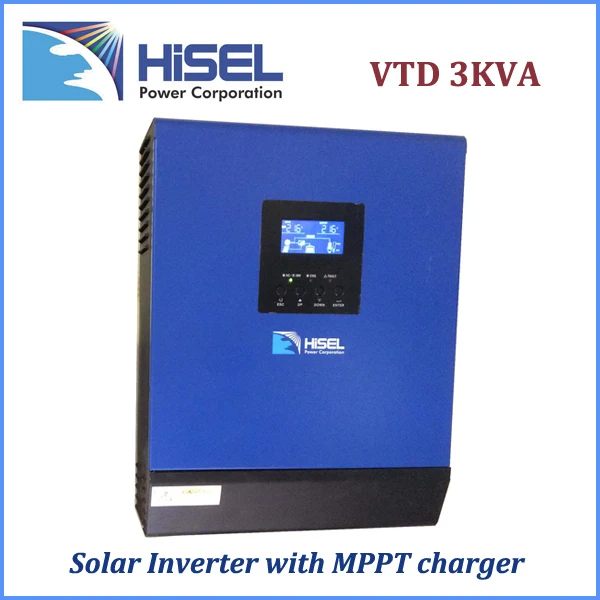

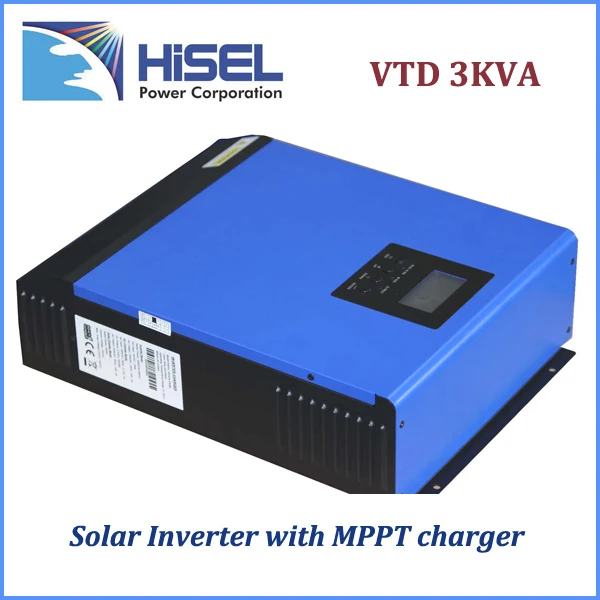

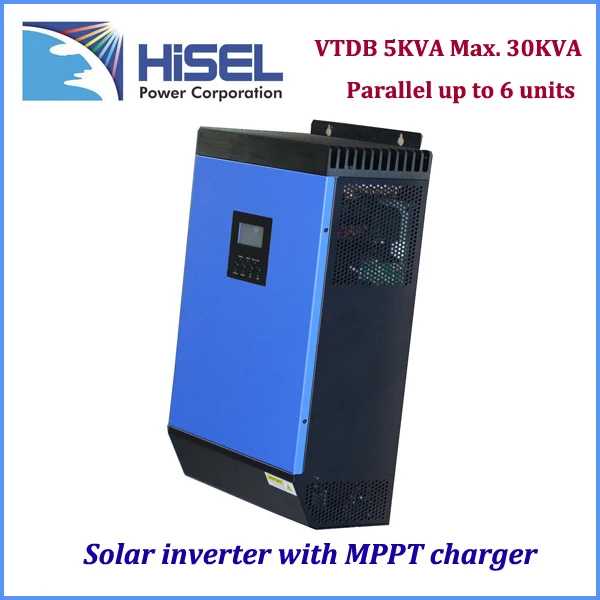

3. Photos of HiSEL hybrid solar inverter

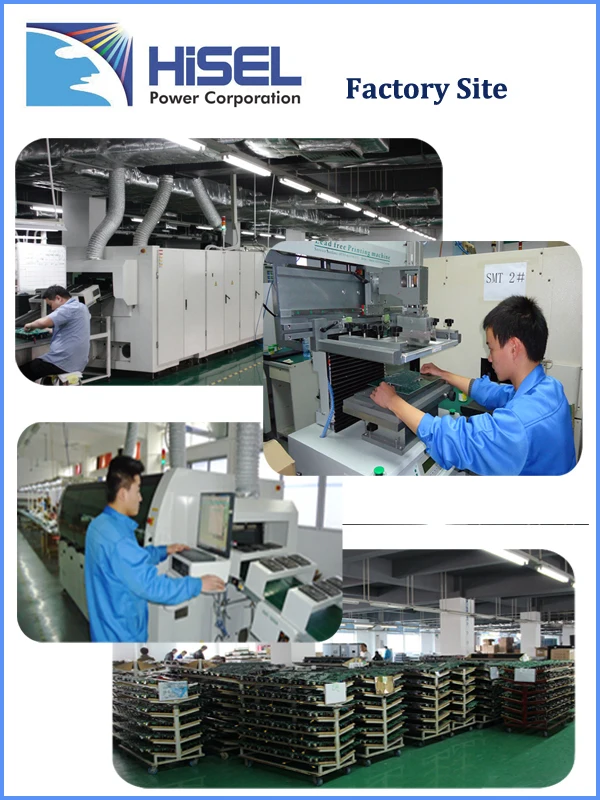

4. Production of HiSEL hybrid solar inverter
5. Certificates of HiSEL hybrid solar inverter


Packaging & Shipping

Package detail:  Cartons or according to clients' needs. 658*415*261mm 1pc/carton 16.8kg for 5kva 385pcs for 20ft container, 955pcs for 40ft container

Delivery detail:  20-25 working days. sample within 7 days

FAQ



Q1: How to choose a right inverter?



A1:Tell us your demand, then our sales will recommend a suitable inverter to you.







Q2: What's the different between inverter and solar inverter?



A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.







Q3: How about the delivery time?



A3:  7 days for sample; 25 days for bulk order.







Q4: What is the warranty of inverter?



A4: Two years warranty on HiSEL solar product.







Q5: How to solve the technical problem?



A5: 24 hours after-service consultancy just for you and to make your problem to solve easily. Branch office in ISB Pakistan, Uganda.
