Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HiSEL
  • Model Number: VTD 1KVA-5KVA
  • Specification: Normal
  • Application: Commercial
  • Output Voltage (V): 230vac ,50Hz/60Hz(auto detection)
  • Load Power (W): 800w 1600w 2400w 3200w 4000w
  • Solar Power (W): 1kva 2kva 3kva 4kva 5kva
  • Work Time (h): 24h/7days
  • Rated Power: 1kva 2kva 3kva 4kva 5kva
  • solar charger: PWM optional
  • Power factor: 0.8
  • Input Voltage: 230Vac, 50Hz/60Hz(auto detection)
  • Parallel: up to 6 units (Optional)
  • Selectable Voltage Range: 170-280VAC (for personal computers); 90-280VAC (for home appliances)
  • Voltage Waveform: pure sine wave
  • Battery Voltage: 12vdc 24vdc 48vdc
  • Max. Battery Charge Current: 10A 20A 30A
  • Solar charge current: 50Amp

Packaging & Delivery

Packaging Details Strong Canton Package or with wooden stock
Delivery Time 1-2 week
2017 Hisel hot sale pure sine wave hybrid inverter solar power system for home


Product Description

Quick Details



Place of Origin:Guangdong, China (Mainland)Brand Name:HiselModel Number:VTB series solar inverter
Output Power:1 -5KvaOutput Type:SingleSize:95*240*316mm
Weight:5kgsInput Voltage:220v/230v/240VOutput Voltage:220v/230v/240V
Type:DC/AC InvertersOutput Frequency:50Hz/60HzOutput Current:20A-30A
high frequency inverter:PWM/ MPPT solar inverterNominal Efficiency:>90%Application:TV,refrigerator,fan,air condition...
Pass through without Battery:YesTransfer time:10ms typical(UPS); 20ms typical(appliances)Operating Temperature:0°C to 40°C
Warranty:12 monthsBattery type:Lead acid Battery/Lithium Battery

Parallel function

9 units
max power inverter:30kva/24kw solar inverter




Specifications

1. Low idle consumption
2. Solar/AC prior configurable
3. MPPT controller with 98% efficiency
4. Pure sine wave
5. DC12V 24V 48V

HiSEL Parallel Function Pure Sine Wave Solar Power Inverter wih MPPT/PWM, Solar Inverter

1. Features of HiSEL hybrid solar inverter

- Pure sine wave inverter

- Surge capacity for inductive loads

- Built-in PWM solar charge controller

- Selectable input voltage range for home appliances
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Selectable charging current base on applications
- Smart battery charger design for optimized battery performance
- Overload , short-circuit , over temperature ,low/high voltage protection

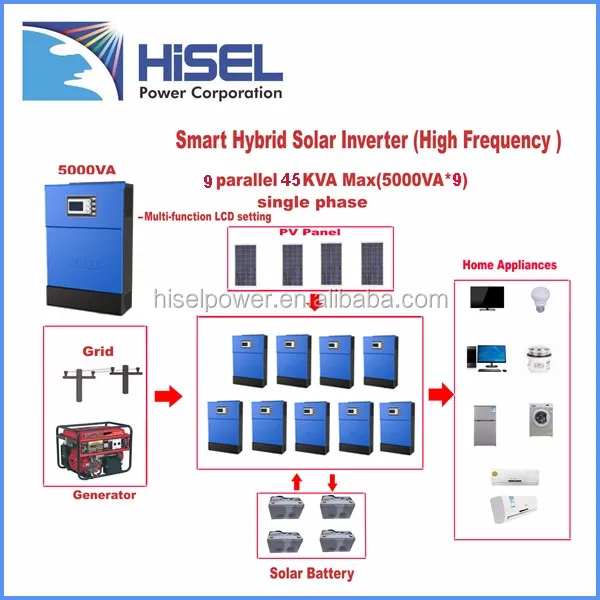

- Parallel operation with up to 9 units (Available for 4K/5K)
- Optional Remote Control Panel available
- One-key Reset function to factory setting
2. Datasheet of HiSEL hybrid solar inverter

Model

HI0812-IHWP

HI1624-IHWP

HI2424-IHWP

HI3248-IHWP

HI4048-IHWP

Rated Power

1KVA/800W

2KVA/1600W

3KVA/2400W

4KVA/3200W

5KVA/4000W

Input

Nominal Input Voltage

230Vac, 50Hz/60Hz(auto detection)

Selectable Voltage Range

170-280VAC (for personal computers); 90-280VAC (for home appliances)

Max AC Input

300Vac

Transfer Time

10ms typical (UPS); 20ms typical (appliances)

Output

AC Voltage Regulation

230VAC± 5% (battery mode)

Voltage Waveform

pure sine wave

Peak Efficiency

90%

93%

Overload Protection

5s@≥150% load; 10s@110%~150% load

Surge Capacity

2 x rated power for 5s

Battery

Battery Voltage

12Vdc

24Vdc

48Vdc

Max. Charge Current

10A or 20A

20A or 30A

20A or 30A

Solar Charger

Charging Current (PWM)

50Amp

Max. PV Voltage (Voc)

40 VDC

60 VDC

105VDC

General

Safety Certification

CE (EN62040-1)

Operating Environment

0°C to 55°C, 5% to 95% relative humidity (non-condensing)

Dimension (D*W*H)

95* 240 * 316mm

100*272*355mm

115*295*455mm

Net Weight

5kg

6.9kg

10kg

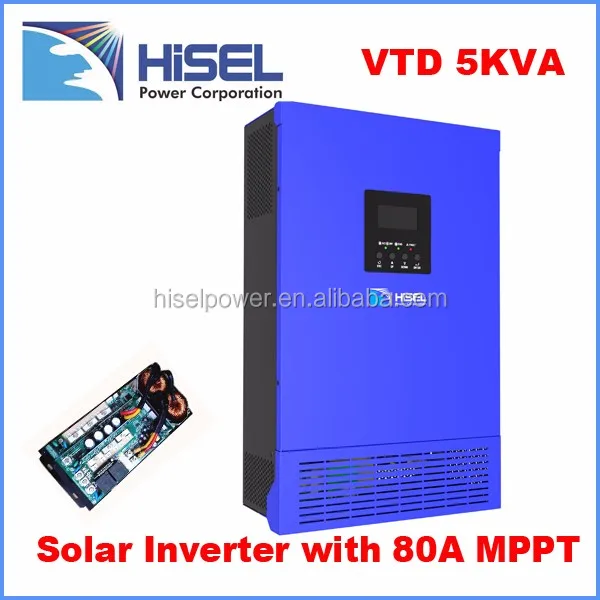

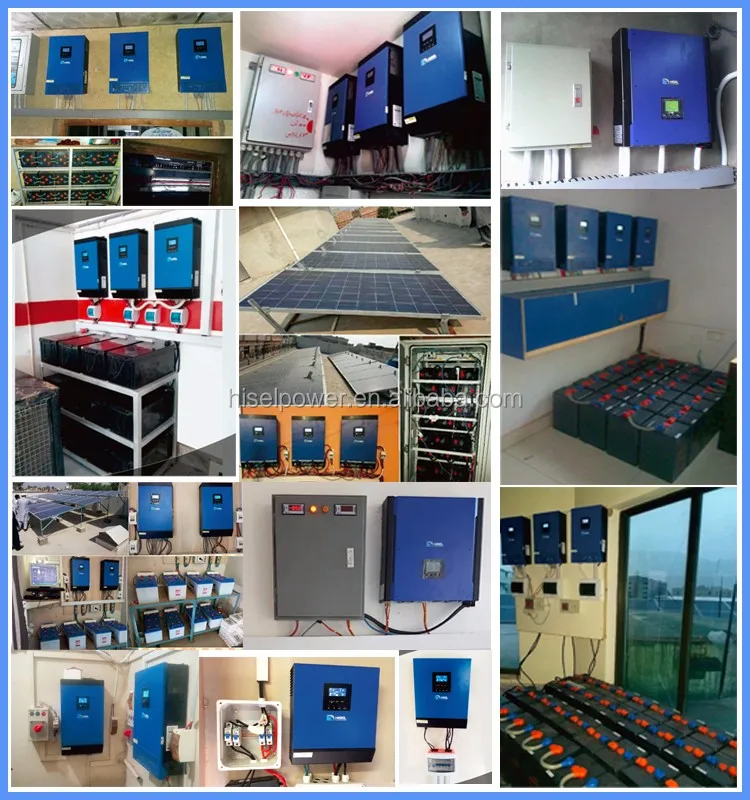

3. Photos of HiSEL hybrid solar inverter


4. Production of HiSEL hybrid solar inverter
5. Certificates of HiSEL hybrid solar inverter


Packaging & Shipping

Package detail:  Cartons or according to clients' needs. 658*415*261mm 1pc/carton 16.8kg for 5kva 385pcs for 20ft container, 955pcs for 40ft container

Delivery detail:  20-25 working days. sample within 7 days

FAQ



Q1: How to choose a right inverter?



A1:Tell us your demand, then our sales will recommend a suitable inverter to you.







Q2: What's the different between inverter and solar inverter?



A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.







Q3: How about the delivery time?



A3:  7 days for sample; 25 days for bulk order.







Q4: What is the warranty of inverter?



A4: Two years warranty on HiSEL solar product.







Q5: How to solve the technical problem?



A5: 24 hours after-service consultancy just for you and to make your problem to solve easily. Branch office in ISB Pakistan, Uganda.
