Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HiSEL
  • Model Number: VTB 1KVA-5KVA
  • Specification: Normal
  • Application: Commercial
  • Output Voltage (V): 220vac 230vac 240vac
  • Load Power (W): 800w 1600w 2400w 3200w 4000w
  • Solar Power (W): 1kva 2kva 3kva 4kva 5kva
  • Work Time (h): 24h/7days
  • Rated Power: 1kva 2kva 3kva 4kva 5kva
  • solar charger: PWM optional
  • Power factor: 0.8
  • Input Voltage: 230Vac, 50Hz/60Hz(auto detection)
  • Selectable Voltage Range: 170-280VAC (for personal computers); 90-280VAC (for home appliances)
  • Output voltage: 230VAC ± 5% (battery mode)
  • Voltage Waveform: pure sine wave
  • Battery Voltage: 12vdc 24vdc 48vdc
  • Max. Battery Charge Current: 10A 20A 30A
  • Solar charge current: 50Amp

Packaging & Delivery

Packaging Details Strong Canton Package or with wooden stock
Delivery Time 1-2 week
Product Description

 Quick Details

Place of Origin:Guangdong, China (Mainland)Brand Name:HiselModel Number:VTB series solar inverter
Output Power:1 -5KvaOutput Type:SingleSize:95*240*316mm
Weight:5kgsInput Voltage:220v/230v/240VOutput Voltage:220v/230v/240V
Type:DC/AC InvertersOutput Frequency:50Hz/60HzOutput Current:20A-30A
high frequency inverter:PWM/ MPPT solar inverterNominal Efficiency:>90%Application:TV,refrigerator,fan,air condition...
Pass through without Battery:YesTransfer time:10ms typical(UPS); 20ms typical(appliances)Operating Temperature:0°C to 40°C
Warranty:12 monthsBattery type:Lead acid Battery/Lithium Battery

Parallel function

9 units
max power inverter:30kva/24kw solar inverter



1. Low idle consumption
2. Solar/AC prior configurable
3. MPPT controller with 98% efficiency
4. Pure sine wave
5. DC12V 24V 48V

2017 China Hisel hybrid solar inverter with PMW charger solar power system

1. Features of HiSEL hybrid solar inverter

- Pure sine wave inverter

- Surge capacity for inductive loads

- Built-in PWM solar charge controller

- Selectable input voltage range for home appliances
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Selectable charging current base on applications
- Smart battery charger design for optimized battery performance
- Overload , short-circuit , over temperature ,low/high voltage protection
- Parallel operation with up to 9 units (Available for 4K/5K)
- Optional Remote Control Panel available
- One-key Reset function to factory setting
2. Datasheet of HiSEL hybrid solar inverter








Rated Power







Nominal Input Voltage

230Vac, 50Hz/60Hz(auto detection)

Selectable Voltage Range

170-280VAC (for personal computers); 90-280VAC (for home appliances)

Max AC Input


Transfer Time

10ms typical (UPS); 20ms typical (appliances)


AC Voltage Regulation

230VAC± 5% (battery mode)

Voltage Waveform

pure sine wave

Peak Efficiency



Overload Protection

5s@≥150% load; 10s@110%~150% load

Surge Capacity

2 x rated power for 5s


Battery Voltage




Max. Charge Current

10A or 20A

20A or 30A

20A or 30A

Solar Charger

Charging Current (PWM)


Max. PV Voltage (Voc)

40 VDC

60 VDC



Safety Certification

CE (EN62040-1)

Operating Environment

0°C to 55°C, 5% to 95% relative humidity (non-condensing)

Dimension (D*W*H)

95* 240 * 316mm



Net Weight

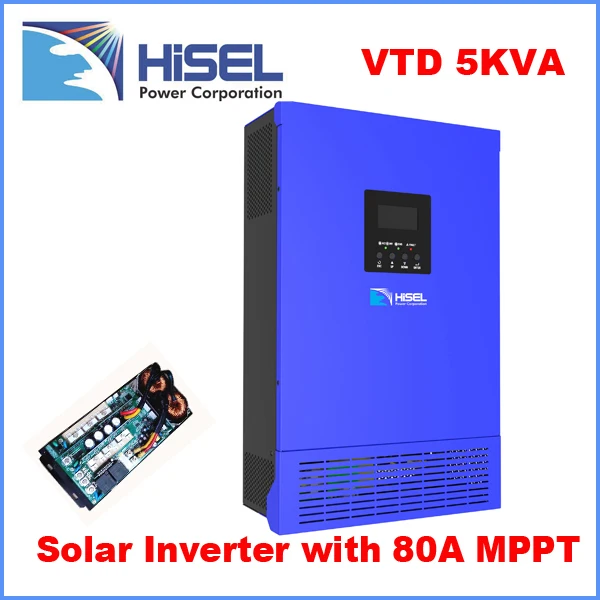

3. Photos of HiSEL hybrid solar inverter

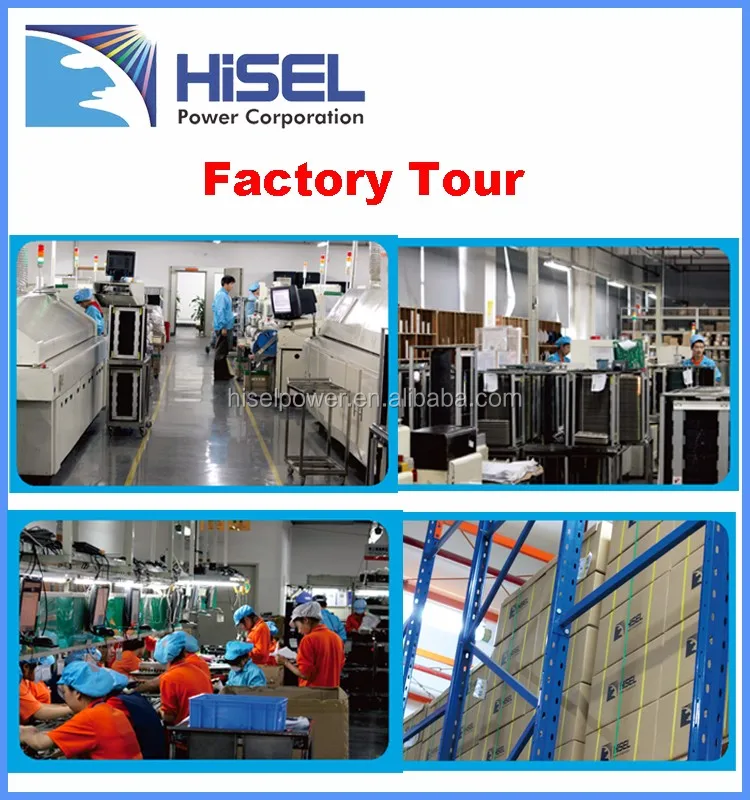

4. Production of HiSEL hybrid solar inverter
5. Certificates of HiSEL hybrid solar inverter

Company Information

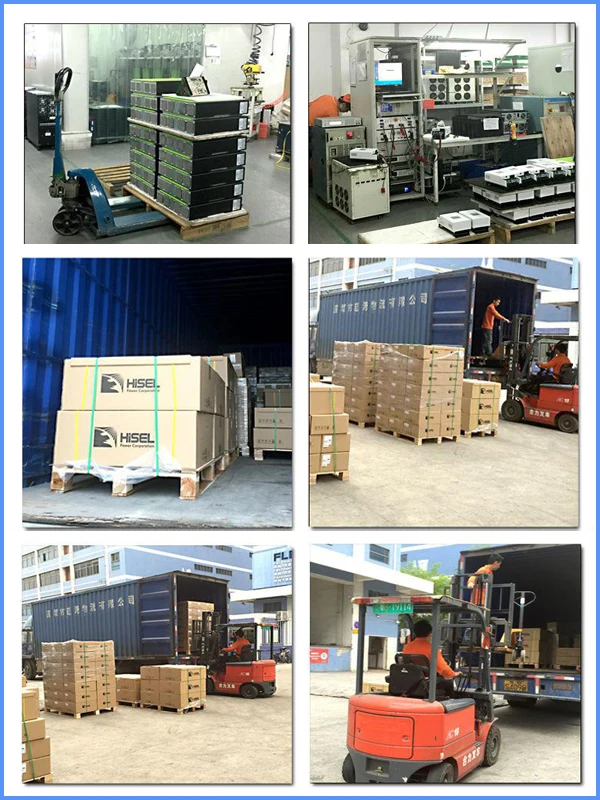

Packaging & Shipping

Package detail:  Cartons or according to clients' needs. 658*415*261mm 1pc/carton 16.8kg for 5kva 385pcs for 20ft container, 955pcs for 40ft container

Delivery detail:  20-25 working days. sample within 7 days



Q1: How to choose a right inverter?


A1:Tell us your demand, then our sales will recommend a suitable inverter to you.




Q2: What's the different between inverter and solar inverter?


A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.




Q3: How about the delivery time?


A3:  7 days for sample; 25 days for bulk order.




Q4: What is the warranty of inverter?


A4: Two years warranty on HiSEL solar product.




Q5: How to solve the technical problem?


A5: 24 hours after-service consultancy just for you and to make your problem to solve easily. Branch office in ISB Pakistan, Uganda.


How to contact us?


Ms Lisa


wechat/what's app/MP:008617770962397
