Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HiSEL
  • Model Number: VTE 3kw 5kw 10kw
  • Specification: Normal
  • Application: Commercial
  • Output Voltage (V): 184-265vac
  • Load Power (W): 3000w 5000w 10kw
  • Solar Power (W): 3kw 5kw single phase, 10kw three phase
  • Work Time (h): 24h/7days
  • Rated Power: 3kw 5kw 10kw
  • solar charger: MPPT /PWM optional
  • Power factor: 0.8
  • Selectable Voltage Range: 170-280VAC ; 170-280VAC per phase
  • Nominal Ourput Voltage: 202;208;220;230;240;400VAC
  • Output Waveform: Pure sine wave
  • Battery Voltage: 48vdc
  • Max. Battery Charge Current: 30A; 40A
  • Operation Environment: 0°C to 55°C, 5% to 95% relative humidity (non-condensing)
  • Communication Port: RS-232/USB ; RS-232/USB and CAN Interface

Packaging & Delivery

Packaging Details: Strong Canton Package or with wooden stock
Delivery Detail: 1-2 week
3000 watt pure sine wave dc to ac power inverter solar power system
Product Description

1. Features of HiSEL hybrid solar inverter

- Pure sine wave output

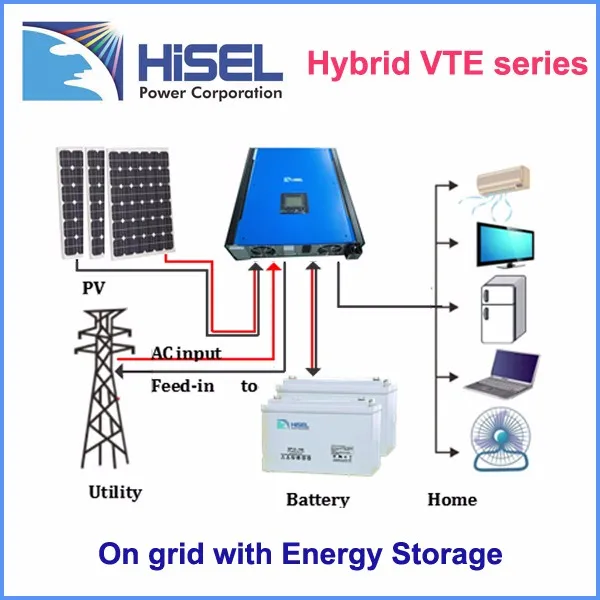

- Self-consumption and Feed-in to the grid

- Programmable supply priority for PV, Battery or Grid.
- Use-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes ; Grid-tie , off-grid and grid-tie with back up
- Built-in timer for various mode of on/off operation.
- Multiple communication for USB, RS-232, Modbus and SNMP
- Monitoring software for real time status display and control.

- Parallet operation with up to 6 units ( Available for VTE 5KW 10KW )

2. Datasheet of HiSEL hybrid solar inverter

PHASE

1-phase in / 1-phase out

3-phase in / 3-phase out

RATED OUTPUT POWER

3000W

5000W

10000W

GRID-TIE OPERATION

PV INPUT (DC)

Maximum PV Input Power

4500W

10000W

14850W

Nominal DC Voltage / Maximum DC Voltage

360 VDC / 500 VDC

720 VDC / 900

Start-up Voltage / Initial Feeding Voltage

116 VDC / 150 VDC

225 VDC / 250 VDC

320 VDC / 350 VDC

MPP Voltage Range

250-450 VDC

250-850 VDC

400-800VDC

Number of MPPT / Maximum Input Current

1 / 1 x 18 A

2 / 2 x 10A

2 / 2 x 18.6A

EFFICIENCY

Maximum Conversion Efficiency (DC/AC)

96%

European Efficiency@ Vnominal

95%

GRID OUTPUT (AC)

Nominal Output Voltage

208/220/230/240 VAC

230 VAC(P-N)/400 VAC(P-P)

Output Voltage Range

184 - 265 VAC

184 - 264.5 VAC

184-265 VAC per phase

Nominal Output Current

13 A

21 A

14.5A per phase

Power Factor

> 0.99

OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage

120-140VAC / 180 VAC

120-140VAC / 180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC

170 - 280 VAC per phase

Maximum AC Input Current

30 A

40A

40A

PV INPUT (DC)

Maximum DC Voltage

500 VDC

900 VDC

MPP Voltage Range

250 VDC ~ 450 VDC

250 VDC ~ 850 VDC

400VDC -800 VDC

Number of MPP Trackers / Maximum Input Current

1 / 1 x 18 A

2 / 2 x 10 A

2/ 2 x 18.6 A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

202/208/220/230/240 VAC

230VAC(P-N)/400VAC(P-P)

Output Waveform

Pure Sine wave

Efficiency (DC to AC)

93%

93%

91%

HYBRID OPERATION

PV INPUT (DC)

Nominal DC Voltage / Maximum DC Voltage

360 VDC / 500 VDC

720 VDC / 900 VDC

720VDC/900VDC

Start-up Voltage / Initial Feeding Voltage

116 VDC / 150 VDC

225 VDC / 250 VDC

320VDC/350VDC

MPP Voltage Range

250-450 VDC

250 VDC ~ 850 VDC

400-800VDC

Number of MPPT/ Maximum Input Current

1 / 1 x 18A

2 / 2 x 10 A

2 / 2 x 18.6 A

GRID OUTPUT (AC)

Nominal Output Voltage

202/208/220/230/240 VAC

230VAC(P-N)/400VAC(P-P)

Output Voltage Range

184-264.5 VAC

184-264.5VAC per phase

Nominal Output Current

13 A

21 A

14.5A per phase

AC INPUT

AC Start-up Voltage / Auto Restart Voltage

120 -140 VAC /180 VAC

120 -140 VAC /180 VAC per phase

Acceptable Input Voltage Range

170 - 280 VAC

170 - 280 VAC per phase

Maximum AC Input Current

30 A

40A

40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage

202/208/220/230/240 VAC

230VAC(P-N)/400VAC(P-P)

Efficiency (DC to AC)

93%

91%

BATTERY & CHARGER

Nominal DC Voltage

48 VDC

Maximum Charging Current

Default 25A,5A-25A(Adjustable)

Default 60A,10A-100A(Adjustable)

Default 60A,10A-200A(Adjustable)

GENERAL

PHYSICAL

Dimension, D X W X H (mm)

107 x 438 x 480

204 x 460 x 600

167x 500 x 622

Net Weight (kgs)

15.5

29

45

INTERFACE

Communication Port

RS-232/USB

RS-232/USB and CAN Interface

RS-232/USB and CAN Interface

Intelligent Slot

Optional SNMP Modbus and AS-400 cards available

ENVIRONMENT

Operating Temperature

0°C to 55°C , 5% to 95% relative humidity (non-condensing )

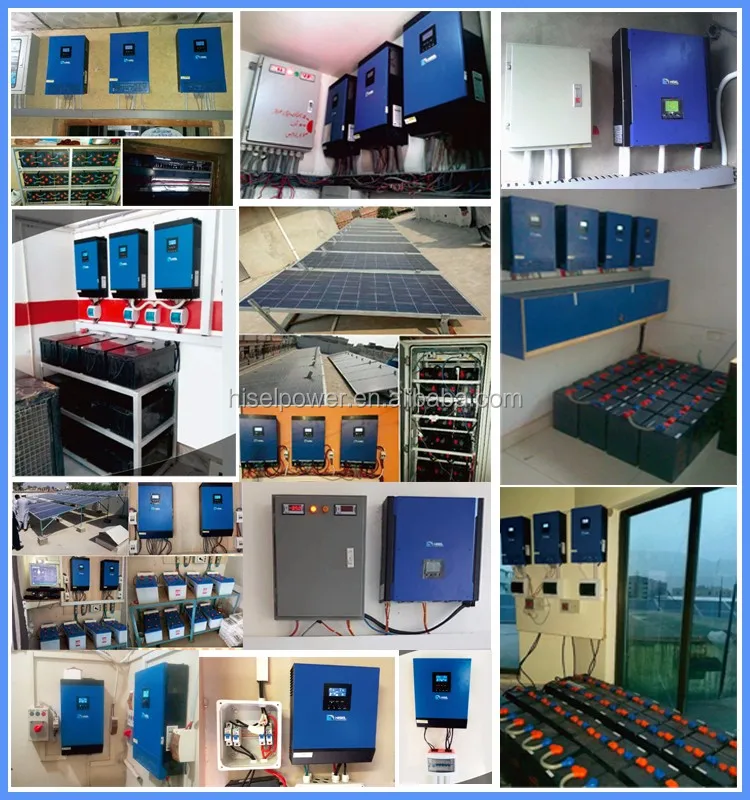

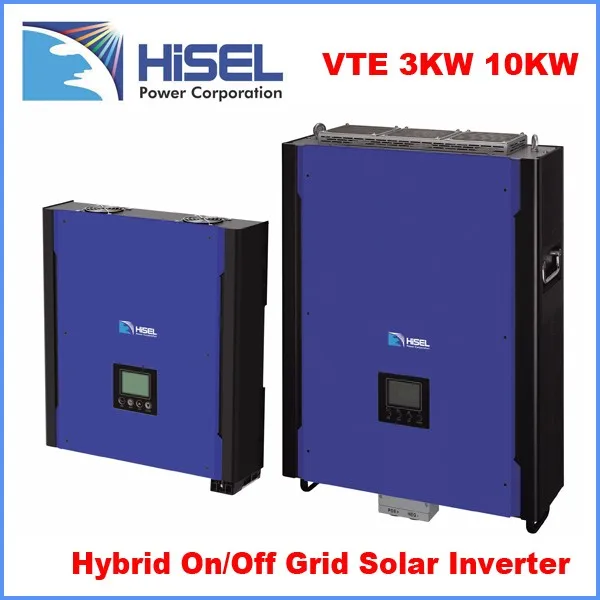

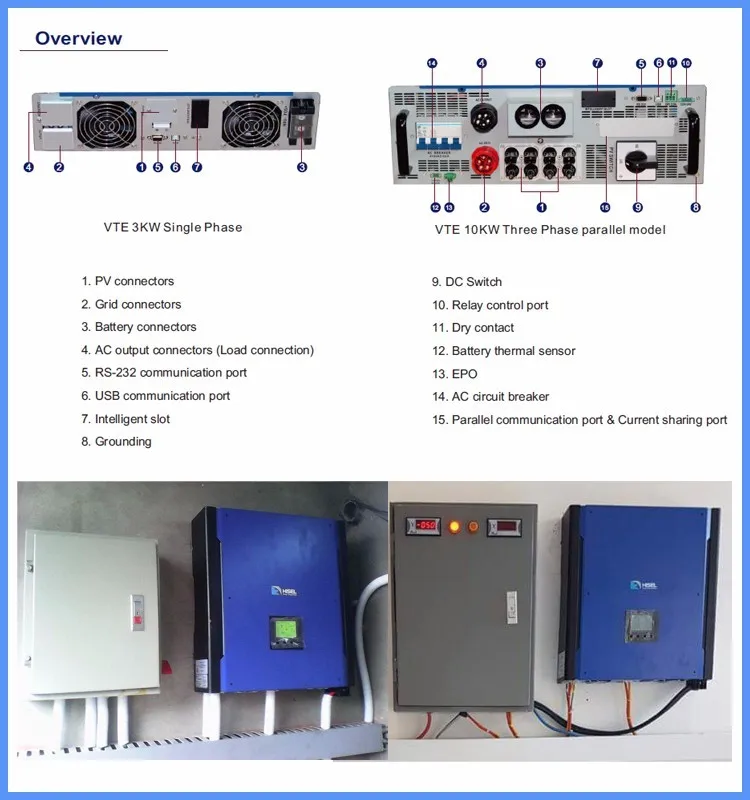

3. Photos of HiSEL hybrid solar inverter



4. Production of HiSEL hybrid solar inverter
5. Certificates of HiSEL hybrid solar inverter


Packaging & Shipping

Package detail:  Cartons or according to clients' needs. 658*415*261mm 1pc/carton 16.8kg for 5kva 385pcs for 20ft container, 955pcs for 40ft container

Delivery detail:  20-25 working days. sample within 7 days

FAQ



Q1: How to choose a right inverter?

 A1:Tell us your demand, then our sales will recommend a suitable inverter to you



 Q2: How about the delivery time?

 A3:  7 days for sample; 25 days for bulk order.



Q3: What is the warranty of inverter?

 A4: Two years warranty on HiSEL solar product..
