Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HiSEL
  • Model Number: SolarM 3000 4000 5000-B
  • Specification: Normal
  • Application: Home
  • Output Voltage (V): 220vac 230vac 240vac
  • Load Power (W): 800w 1600w 2400w 3200w 4000w 8000w 32kw 36kw
  • Solar Power (W): 1kva 2kva 3kva 4kva 5kva 10kva 15kva 20kva 25kva 30kva 40kva 45kva
  • Work Time (h): 24h/7days
  • Rated Power: 1kva 2kva 3kva 4kva 5kva
  • Parallel: up to 9 units (Optional)
  • solar charger: MPPT
  • Power factor: 0.8
  • Input Voltage: 230Vac, 50Hz/60Hz(auto detection)
  • Selectable Voltage Range: 170-280VAC (for personal computers); 90-280VAC (for home appliances)
  • Voltage Waveform: pure sine wave
  • Battery Voltage: 12vdc 24vdc 48vdc
  • Max. Battery Charge Current: 10A 20A 30A
  • Solar charge current: 80A MPPT

Packaging & Delivery

Packaging Details Strong Canton Package or with wooden stock
Delivery Time 1-4 weeks

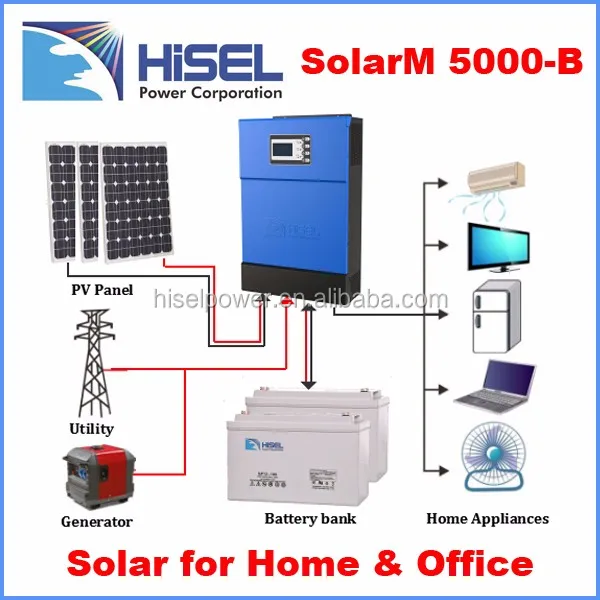

HiSEL 4000w 48 220 dc-ac hybrid pure sine wave solar power inverter
Product Description


1. Low idle consumption
2. Solar/AC prior configurable
3. MPPT controller with 98% efficiency
4. Pure sine wave
5. DC12V 24V 48V

1. Features of HiSEL hybrid solar inverter

- Pure sine wave inverter

- Built-in MPPT solar charge controller

- Selectable input voltage range for home appliances and personal computers
- Selectable charging current based on applications
- Configurable AC/Solar input priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Output overload protection
- Over temperature protection
- Output short circuit protection
- PV reverse polarity protection
- PV over voltage protection
- Battery over voltage protection
2. Datasheet of HiSEL hybrid solar inverter


SolarM 3000

SolarM 4000

SolarM 5000

Rated Power





Nominal Input Voltage

230VAC, 50Hz/60Hz(auto detection)

Selectable Voltage Range

170-280VAC (for personal computers); 90-280VAC (for home appliances)

Max AC Input


Transfer Time

10ms typical (UPS); 20ms typical (appliances)


AC Voltage Regulation

230VAC ± 5% (battery mode)

Surge Power




Voltage Waveform

pure sine wave

Peak Efficiency


Overload Protection

5s@≥150% load; 10s@110%~150% load

Surge Capacity

2 x rated power for 5s


Battery Voltage



Max AC Charge Current



Solar Charger (MPPT)

Max PV Array Power



Max Solar  Charge Current



Max PV Voltage (Voc)

 100 VDC


Max Charge Current

  100A (AC and Solar)

   140A (AC and Solar)

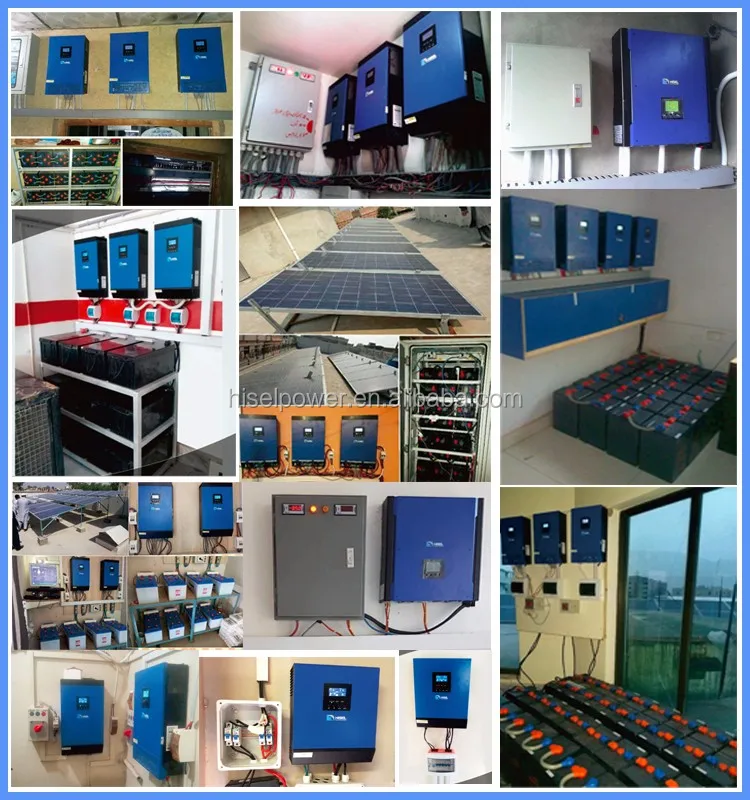

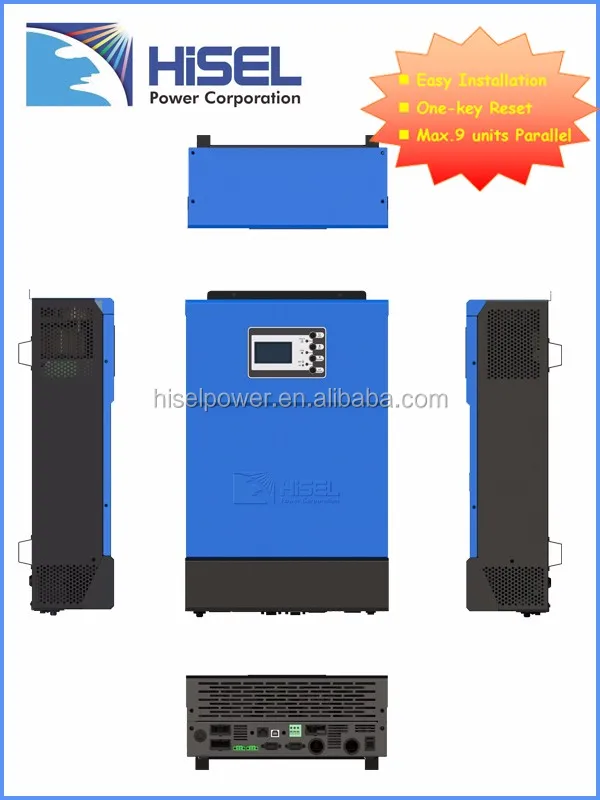

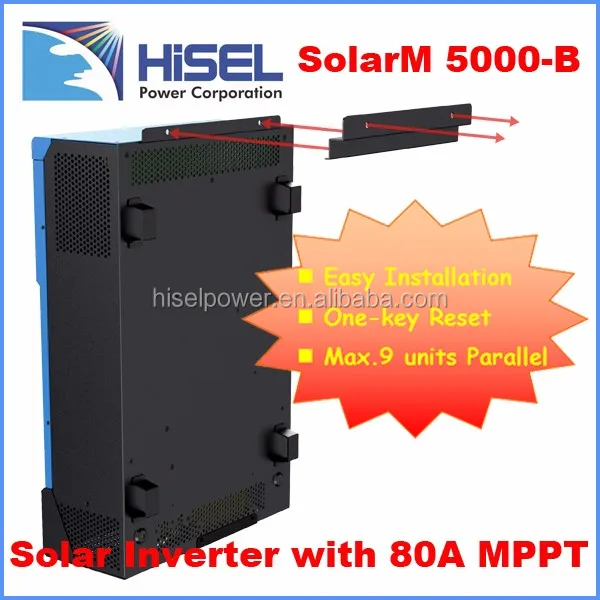

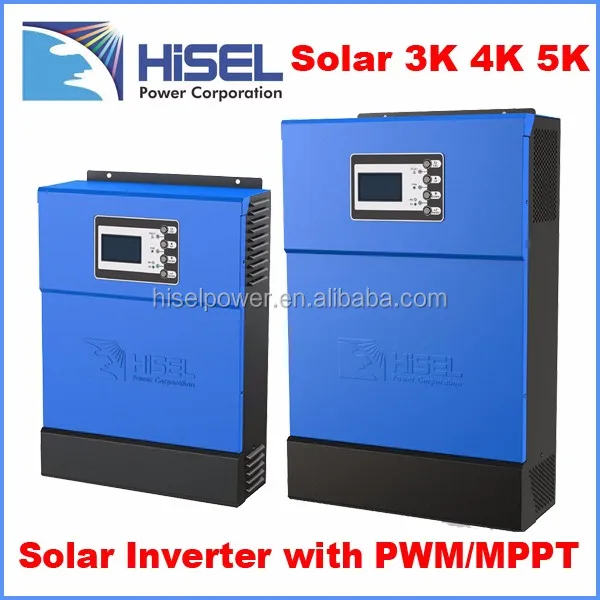

3. Photos of HiSEL hybrid solar inverter

4. Production of HiSEL hybrid solar inverter
5. Certificates of HiSEL hybrid solar inverter

Packaging & Shipping

Package detail:  Cartons or according to clients' needs. 658*415*261mm 1pc/carton 16.8kg for 5kva 385pcs for 20ft container, 955pcs for 40ft container

Delivery detail:  20-25 working days. sample within 7 days



Q1: How to choose a right inverter?


A1:Tell us your demand, then our sales will recommend a suitable inverter to you.




Q2: What's the different between inverter and solar inverter?


A2:  Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.




Q3: How about the delivery time?


A3:  7 days for sample; 25 days for bulk order.




Q4: What is the warranty of inverter?


A4: Two years warranty on HiSEL solar product.




Q5: How to solve the technical problem?


A5: 24 hours after-service consultancy just for you and to make your problem to solve easily. Branch office in ISB Pakistan, Uganda.
